ChainMaster 2

ChainMaster2 (CM2) is a simple electrically powered oil lubrication pump to chains, bearings, gears, open gears and sliding surfaces.

CM2 has been designed from the ground up to be a simple yet flexible for use on applications where electrical drive is preferable, or where mechanical drives are unavailable or difficult to implement.

Overview

The CM2 is an electrically operated oil pump, housed inside its own 3L (.8USG) or 7L (1.8USG) reservoir. Designed to be easy to use and fit, CM2 has 2 mounting holes and a standard automotive plug connection. CM2 is equally proficient at powering a full system as it is delivering to only one or two chains or points. CM2 will pump all standard oils.

CM2 is not designed to run continuously, it is instead intended to be controlled by a vehicle's electronics or with the system’s optional timer which will deliver: 0, 15, 30 or 60CC /hr (0, 0.5, 1.0 or 2Oz /hr)

Pump features

• Dual 12DC gear motor.

• 200 micron contaminant filter.

• Self priming.

• Available in kit form for user/dealer fit.

• Available with timer if required.

• Designed to be flexible, powering systems or just 1 or 2 delivery points.

• Simple, Rugged, Reliable.

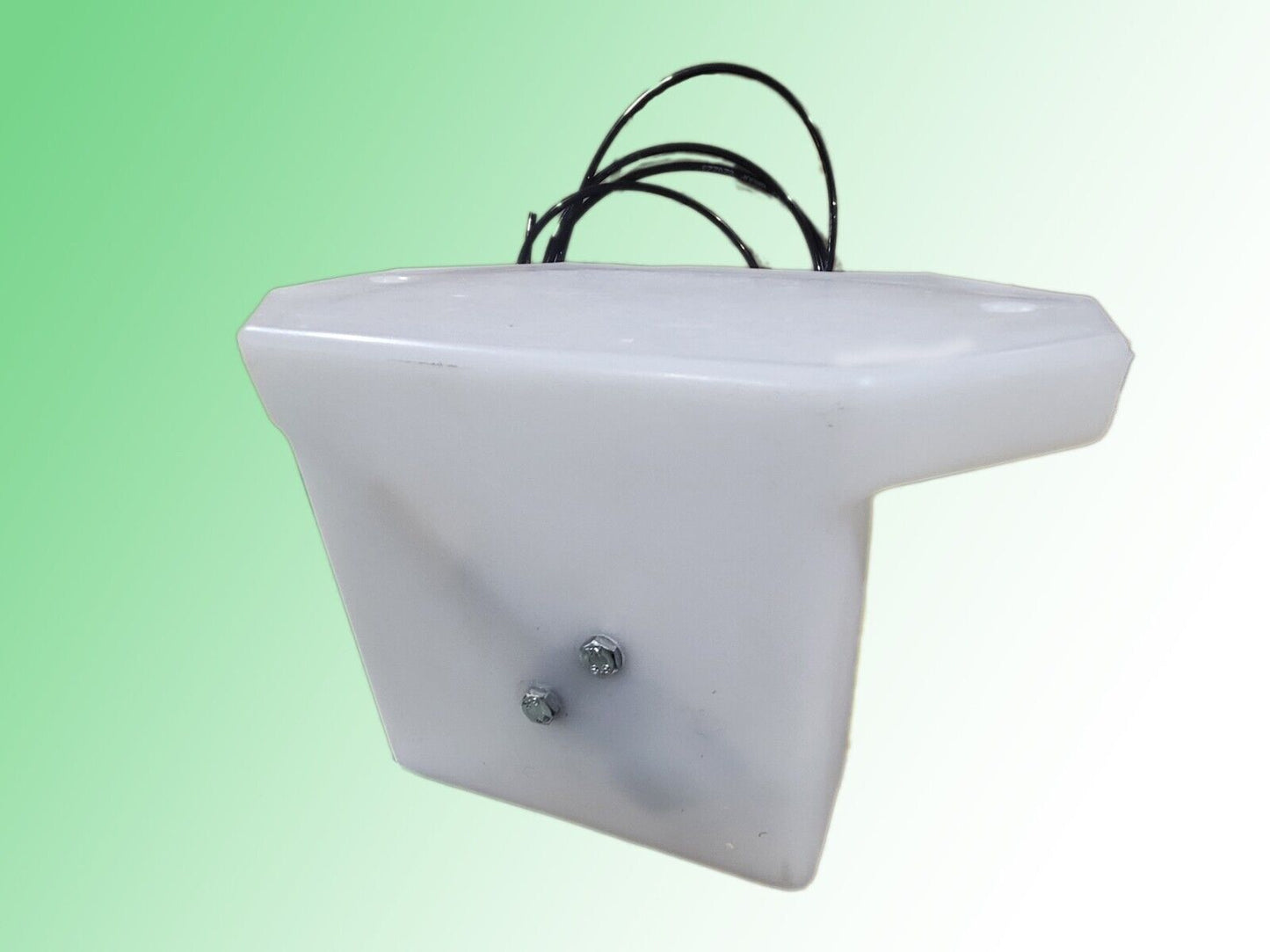

• Single outlet timed version shown

• Single output with timer Delivery/Hr
